How to view Diagnostics Information

Important Notes:

  1. Diagnostics Information is captured only if you have captured image or video recordings using Redpen (web app, browser extension, desktop app).
  1. Network logs are captured only for video recordings currently.
  1. Console Logs, Network Logs, Cookies, IndexedDB, and Local Storage are only available for the Standard and Teams Premium for Jira plans.

You can see the Diagnostics Information as follows:

  1. Inside Redpen web application
  2. In the issue created by Redpen in Jira or Azure DevOps
  1. Inside JSON file attachment
  2. In the Issue description field
  3. In the Redpen Diagnostics Section

1. Redpen web application

Step 1: Select the captured images and recorded video in the Redpen web application.

Step 2: Click on the “Diagnostics” button as shown below. ‍

Step 3: Click on the option of the information you want to view.

2. In the issues created by Redpen in Jira or Azure DevOps

  1. Capture screenshot/video using Redpen.
  1. Create an issue using Redpen (Jira or Azure DevOps) with the captured screenshots/video.
  1. Go to the issue created using Redpen.

You will see the diagnostics info as follows:

a. JSON file attachment:

A JSON file having the diagnostic information will be attached to the issue created in Jira or Azure DevOps.

Download and open to see diagnostic information.

b. Issue description field

If you do not have Jira add-on or Azure DevOps extension installed, the basic diagnostics information will be displayed in the issue description field of the Jira/Azure DevOps issue. The full diagnostics information will be available in the JSON file attached (see 2.a above)

c. Redpen Diagnostics Section

Diagnostic information will be displayed in the Redpen Diagnostics Section in the issue view (Jira or Azure DevOps) if Jira add-on or Azure DevOps extension is installed.

Follow the below steps to see console logs and network logs.

Step 1: Select the image file name from the dropdown for which you want to see the diagnostics information.

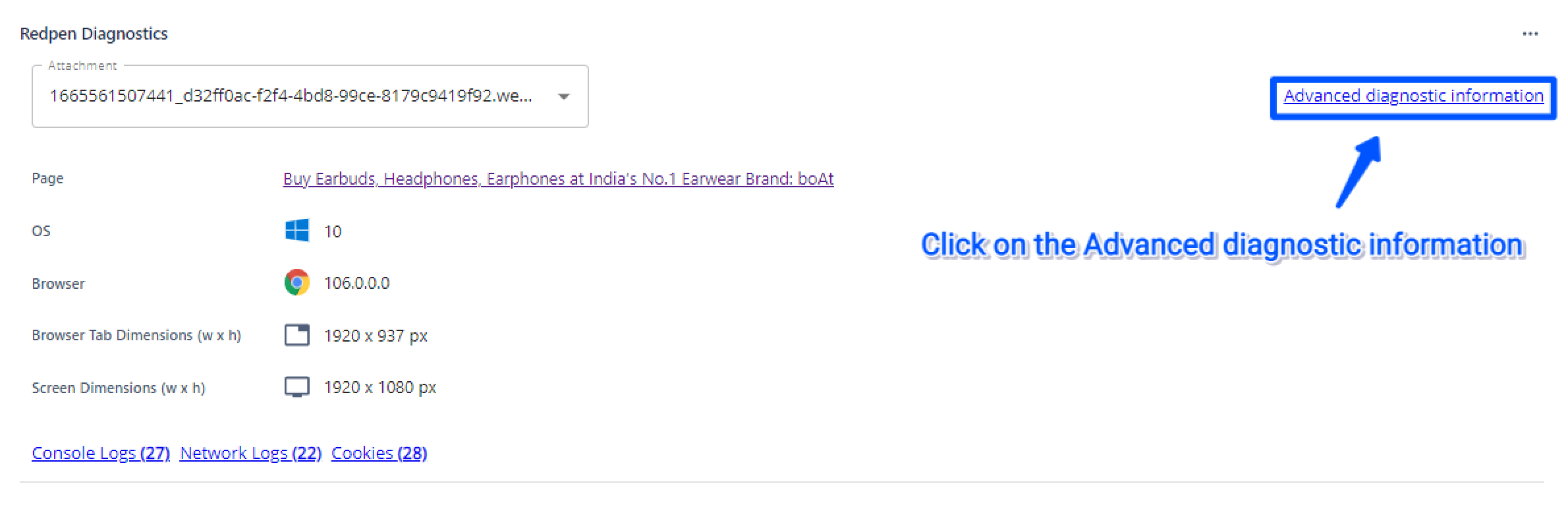

Step 2: Basic information will be displayed below it. Click on the Advanced Diagnostic Information.

Step 3: Click on the option of the information you want to view.

Other points to be noted:

  • Uploaded images/videos to Redpen will not have diagnostics information and will not be sent to the created issue in Jira or Azure DevOps.
  • Diagnostic information will be captured as per the selected Redpen plan. To know more about Redpen plan, click here.
  • The Redpen Diagnostics Section will display in the issue view in Jira or Azure DevOps if Redpen Jira add-on or Azure DevOps extension is installed on your Jira site or Azure DevOps organization respectively.
